Spare parts and accessories for SUZUKI GSX 1100 G

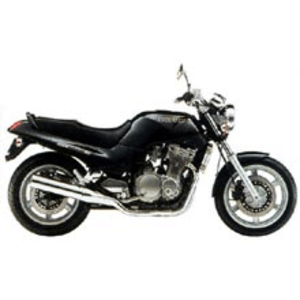

SUZUKI GSX 1100 G

1991 - 1996

Specifications*

Engine size:
1128
Cylinders:
4
hp/kW:
100/74, 98/72
Vehicle weight (kg):
279
Seat height (mm):
790
Valve clearance (intake):
KALT 0,10-0,15 MM
Valve clearance (exhaust):
KALT 0,18-0,23 MM
Engine idle speed:
1100 ± 100 U/MIN
Carburettor air screw:
1,75 AUSDREHUNGEN
Tyre pressure (front):
2,25 BAR
Tyre pressure (rear):
2,5 (2,9) BAR
Spark plug 1:
NGK JR9B
Spark plug 2:
NGK DR9EIX
Electrode gap:
0,7 MM
Fork tube diam.:
43 MM TELEGABEL
Chain/Final drive:
KARDAN
Specifications*
Engine size:
1128
Cylinders:
4
hp/kW:
100/74, 98/72
Vehicle weight (kg):
279
Seat height (mm):
790
Valve clearance (intake):
KALT 0,10-0,15 MM
Valve clearance (exhaust):
KALT 0,18-0,23 MM
Engine idle speed:
1100 ± 100 U/MIN
Carburettor air screw:
1,75 AUSDREHUNGEN
Tyre pressure (front):
2,25 BAR
Tyre pressure (rear):
2,5 (2,9) BAR
Spark plug 1:
NGK JR9B
Spark plug 2:
NGK DR9EIX
Electrode gap:
0,7 MM
Fork tube diam.:
43 MM TELEGABEL
Chain/Final drive:
KARDAN

Capacities*

Fork oil per rod:
562 ML SAE 10W
Engine oil w/o filter:
4,8 L SAE 10W-40
Engine oil with filter:
5,0 L API SF/SG
Brake fluid:
DOT 4
Final drive oil:
330-350 ML 90 GL-5
Fuel:
20,0 LITER
Coolant:
LUFT-/ÖLGEKÜHLT
Capacities*
Fork oil per rod:
562 ML SAE 10W
Engine oil w/o filter:
4,8 L SAE 10W-40
Engine oil with filter:
5,0 L API SF/SG
Brake fluid:
DOT 4
Final drive oil:
330-350 ML 90 GL-5
Fuel:
20,0 LITER
Coolant:
LUFT-/ÖLGEKÜHLT

Test reports and information

MOTORRAD TEST 1996
TOURENFAHRER 4/95
TOURENFAHRER 5/91
MOTORRADKATALOG 1996
MOTORRADFAHRER 12/92
Find used value:
Test reports and information*
MOTORRAD TEST 1996
TOURENFAHRER 4/95
TOURENFAHRER 5/91
MOTORRADKATALOG 1996
MOTORRADFAHRER 12/92
Find used value:

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

95 articles
2 Variants
4.5
4.2
3.9
2 Variants
5
2 Variants
4.6
4.8
4.7
2 Variants
5
2 Variants
4.3
Tip
Tips for DIY mechanics
We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >
Find out more
* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for SUZUKI GSX 1100 G (GV74A)

Are you planning to maintain and service your own SUZUKI GSX 1100 G (GV74A)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your SUZUKI GSX 1100 G (GV74A). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
